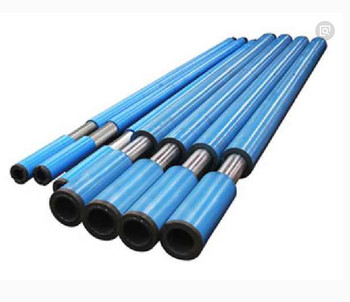

API Hydraulic Fishing Jar 160 Degree Full Hydraulic Drilling Jar
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Active 1 | Mechanical | Active 2 | Hydraulic |
|---|---|---|---|
| For | Oil & Gas Well Drilling | Name | Hydraulic Fishing Jar |
| High Light | API Hydraulic Fishing Jar 160 Degree,API Full Hydraulic Drilling Jar,Hydraulic Fishing Jar 160 Degree |
||
Product Description
Hydraulic Fishing Jar Basic Info.
Structure
Vertical
Material
Alloy
Transport Package
Wood Cartons
Origin
Mudanjiang
HS Code
84314310
Production Capacity
20000 Set/Year
Product Description
Product Description
QY type high temperature hydraulic drilling jar is a new generation dual-acting hydraulic jar which is fully upgraded by our company on the basis of the original QYSZ II full-hydraulic drilling jar. It has the characteristics of simple operation, adjustable shock tonnage, etc. This type of drilling jar adopts a new hydraulic delay release system, which has excellent reliability and wide adaptability.
Application
It is suitable for all conventional wells,inclined wells and large displacement wells whose temperature is not higher than 160ºC.
Product Features
Optimized machine structure improves the maintainability of the machine.
The selected sealing material improves the sealing reliability.
Oil bath sealing design is adopted to the core mechanism to reduce the wear of moving parts improving the working life of whole machine.
Enlarged overflow area of the release channel reduces the running resistance improving the jarring effect obviously.
The operating force of hydraulic releasing mechanism can be controlled on the ground. Driller can adjust the operating force flexibly according to the downhole condition.
The optional mechanical locking module is available to meet the special needs of some special customers.
Upper and lower stroke quick recovery function is optional. The mandrel moves back to the middle position and is ready to jar again to any direction.
Technical Parameters
QY type high temperature hydraulic drilling jar is a new generation dual-acting hydraulic jar which is fully upgraded by our company on the basis of the original QYSZ II full-hydraulic drilling jar. It has the characteristics of simple operation, adjustable shock tonnage, etc. This type of drilling jar adopts a new hydraulic delay release system, which has excellent reliability and wide adaptability.
Application
It is suitable for all conventional wells,inclined wells and large displacement wells whose temperature is not higher than 160ºC.
Product Features
Optimized machine structure improves the maintainability of the machine.
The selected sealing material improves the sealing reliability.
Oil bath sealing design is adopted to the core mechanism to reduce the wear of moving parts improving the working life of whole machine.
Enlarged overflow area of the release channel reduces the running resistance improving the jarring effect obviously.
The operating force of hydraulic releasing mechanism can be controlled on the ground. Driller can adjust the operating force flexibly according to the downhole condition.
The optional mechanical locking module is available to meet the special needs of some special customers.
Upper and lower stroke quick recovery function is optional. The mandrel moves back to the middle position and is ready to jar again to any direction.
Technical Parameters
| Size | 79 | 89 | 95 | 108 | 121 | 165 | 178 | 203 | 241 | |
| OD (mm) | 80 | 90 | 96 | 109 | 122 | 167 | 181 | 206 | 244 | |
| ID (mm) | 25 | 32 | 32 | 38 | 50 | 57(70) | 70 | 76 | 76 | |
| Max Operating Temperature ºC | 160 | |||||||||
| Tensile Strength (KN) | 600 | 750 | 1000 | 1350 | 1950 | 3750 | 4650 | 6030 | 8500 | |
| Torsional Strength (KN.m) | 6 | 7 | 8 | 16 | 25 | 70 | 80 | 135 | 165 | |
| Allowable Release Force | Upper Jarring (KN) | 150 | 180 | 200 | 250 | 350 | 700 | 800 | 1000 | 1250 |
| Lower Jarring (KN) | 60 | 90 | 100 | 120 | 180 | 350 | 400 | 500 | 650 | |
| Upper/Lower Jarring Stroke (mm) | 265 | 317.5 | ||||||||
| Total Stroke (mm) | 530 | 635 | ||||||||
| Connection | 2-3/8REG NC23 |
2-7/8REG NC26 |
2-7/8REG NC26 |
NC31 | NC35 NC38 |
NC50 | NC50 | 6-5/8REG | 7-5/8REG | |
